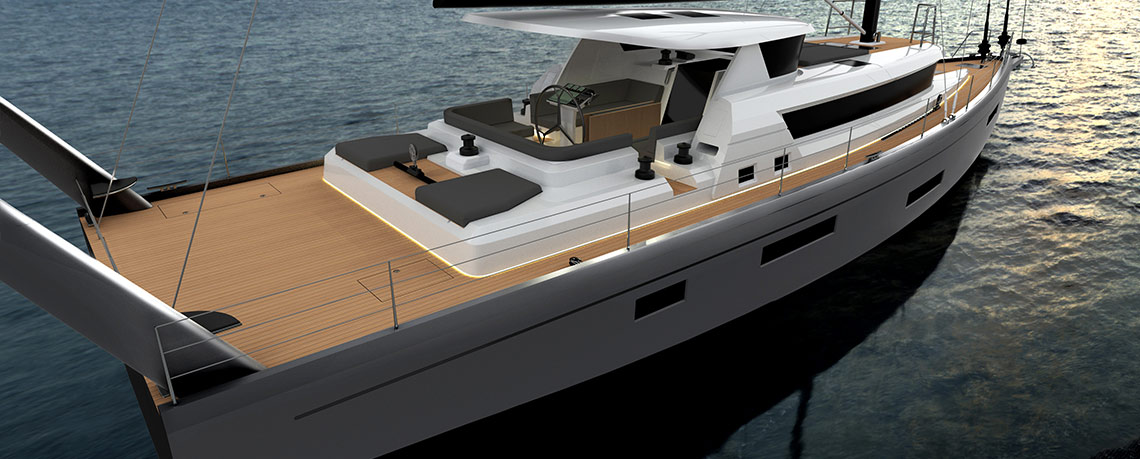

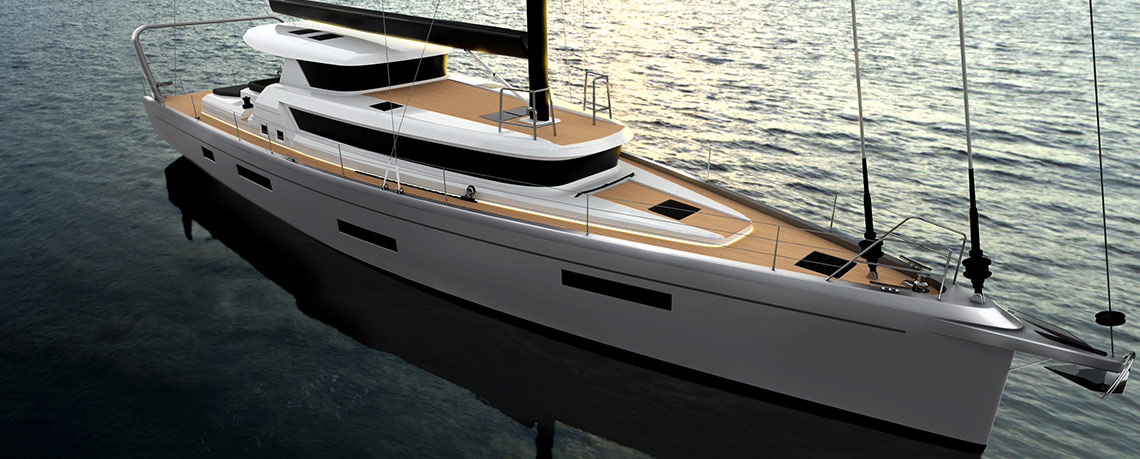

  • MCP Yachts SY 80

  • MCP Yachts SY 80

  • MCP Yachts SY 80

PROJET | AMÉNAGEMENTS | LES SPÉCIFICATIONS | IMAGES

LOA (without the Anchor Davit): 20.10 m
LWL – Lenght Waterline: 20 m
Maximum Beam: 5,50 m
Draft: min. 2,05 m - max. 4,15 m
Light displacement: 29 ton
Maximum displacement:: 35 ton
Fuel Capacity: 2.640 l
Water Capacity: 2.380 l
Hull Material: Aluminum 5083
Superstructure Material: Composite
Doghouse Material: Aluminum 5083
Main Engine: Yanmar 4LV 170hp or Volvo D40 -180 + 2 engine throttles
Genset: Cumins Onan 220V 13.5 kW
Water maker DC (WV eletronics) – 150 l per hour
Webasto Air heating system
Autopilot System: NKE Autopilot

Navigation pack:
Simrad – Radar, GPS – 2 X Chartplotters
2x depth and speed sensor display
2x wind stations display
VHF/AIS and SSB system
Harken ST60 and St70 Winchs

Mast and Sails
Aluminum mast and carbon fiber boom
I: 23 m
E:10 m
P: 22 m
J: 6.5 m
ISP: 23.6 m
TPS: 7.8 m
Back Riggins Length: 27 m

Sails
Asymmetrical Spinnaker: 290 m²
Staysail: 54 m²
Genoa: 103 m²
Mainsail: 110 m²

Optionals:
Deck:
Teak Deck
Non Slip deck options

Painting and Fairing Op:
Full Fairing and high gloss painted Hull
Standard Aluminum Brushed high gloss Hull
Full Painted Mast and Boom
Non Slip deck options

Equipment Op:
Marine Air – Cruisair AC units ou Aqua-Air AC
Genset: Cumins Onan 220V 17.5 kW
Quick DC Eletric Bow Thruster
Direct current dessalinizador
Preheating cycle for shower water
Flexboat Tenders
Solar Panels
MCP Yachts - Watertight Cockpit Door

Quilhas Op (Keels Op):
Option A: Fixed keel: Aluminum full welded to the hull and LEAD interior: Draft: 2.95m – 9 Ton
Option B:Lifting Keel with pivoting mechanism: Aluminum structured and Lead interior: Min. Draf: 1.8m – Max. Draft: 3.5m
